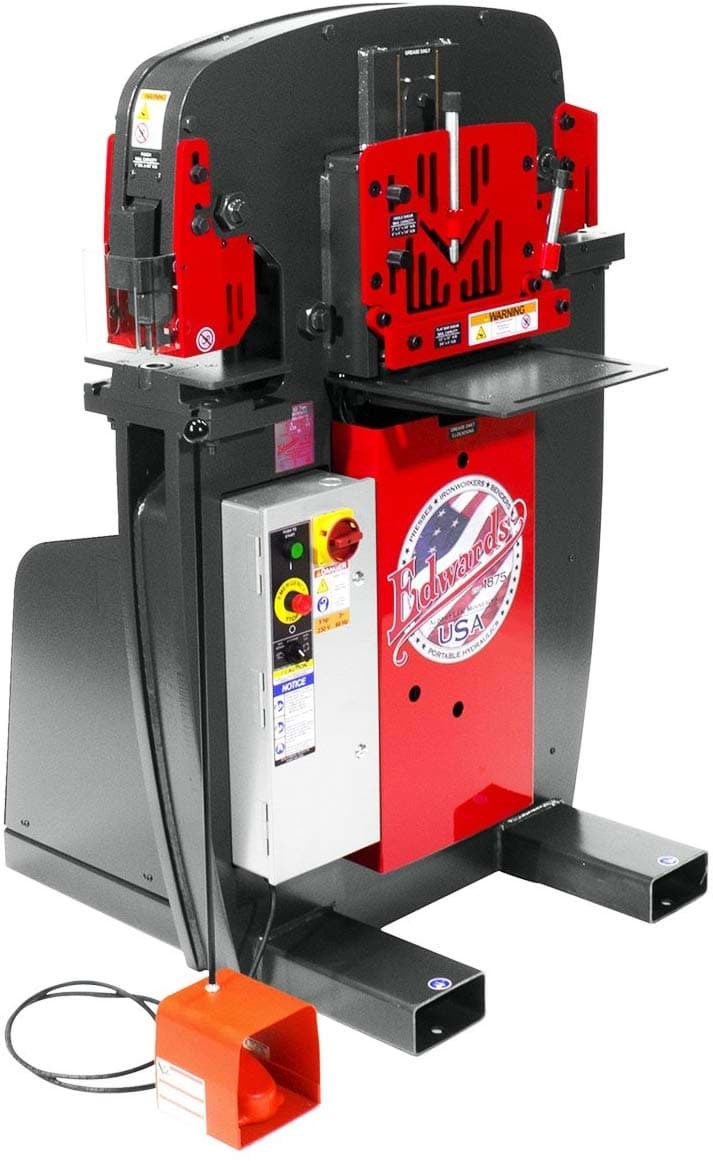

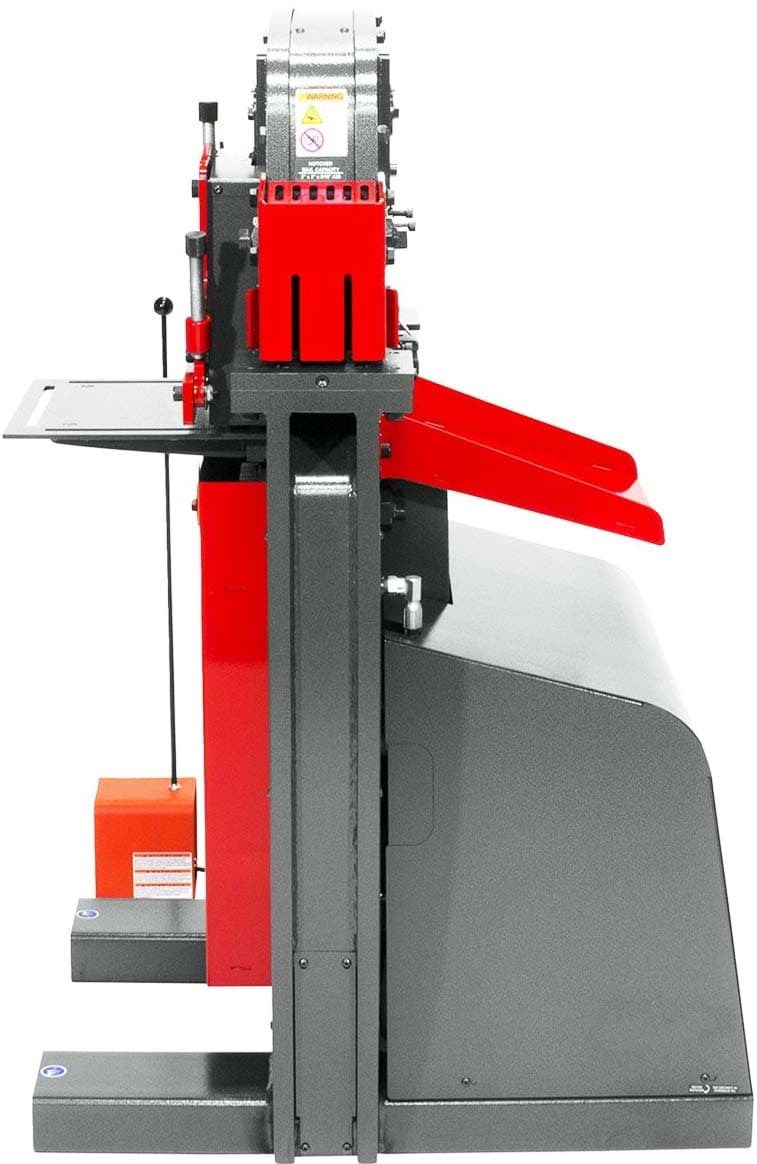

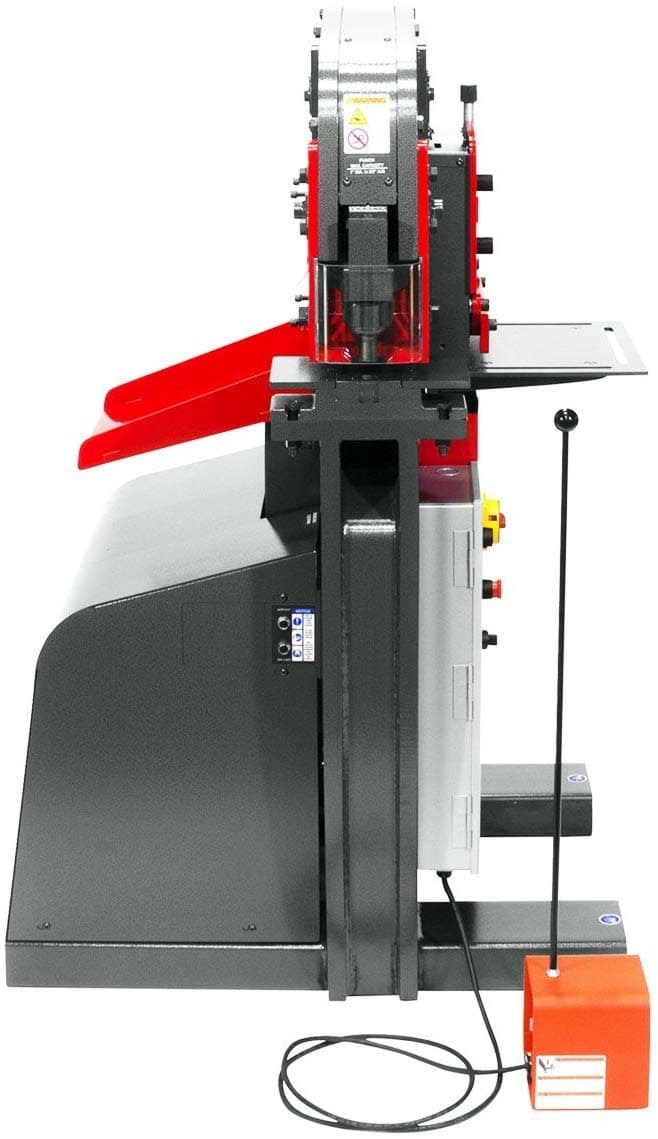

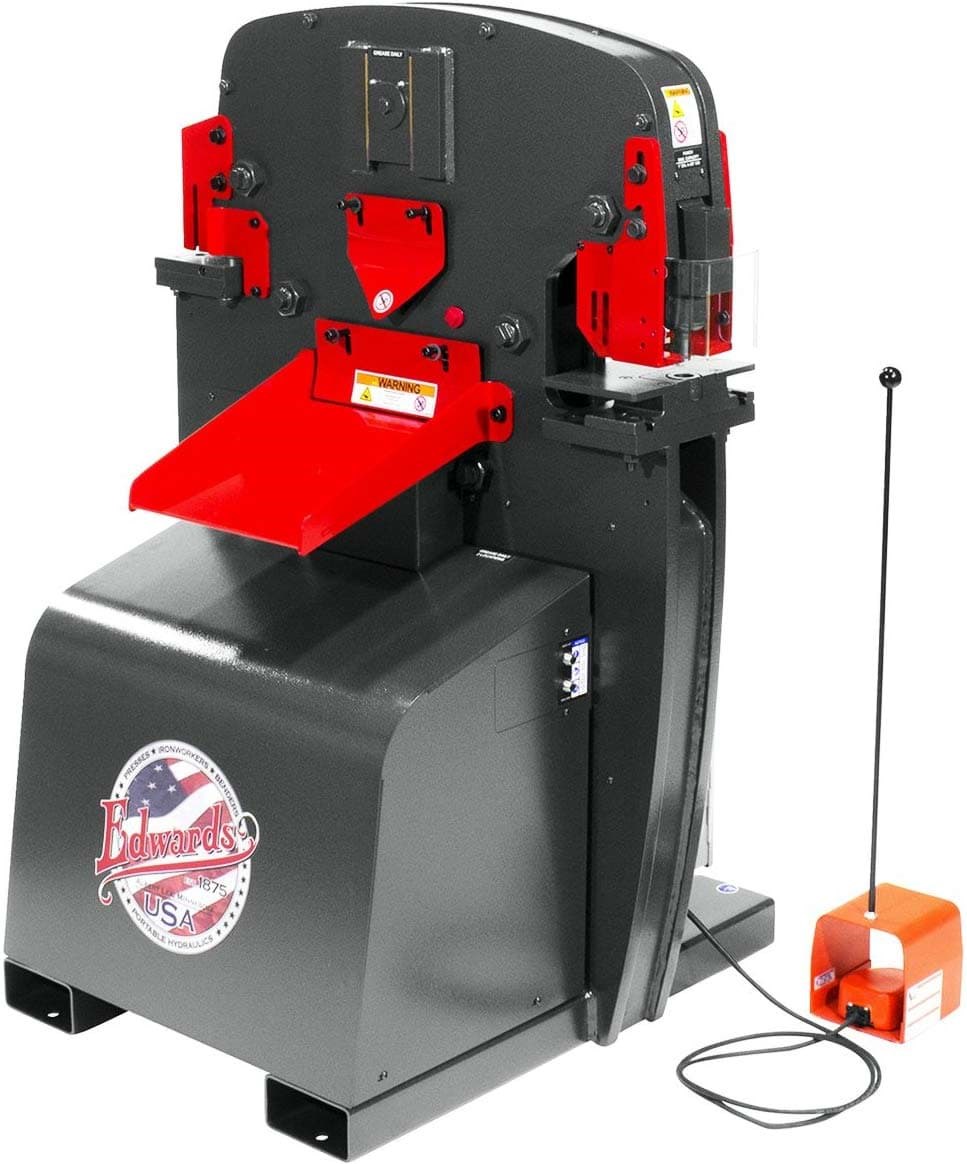

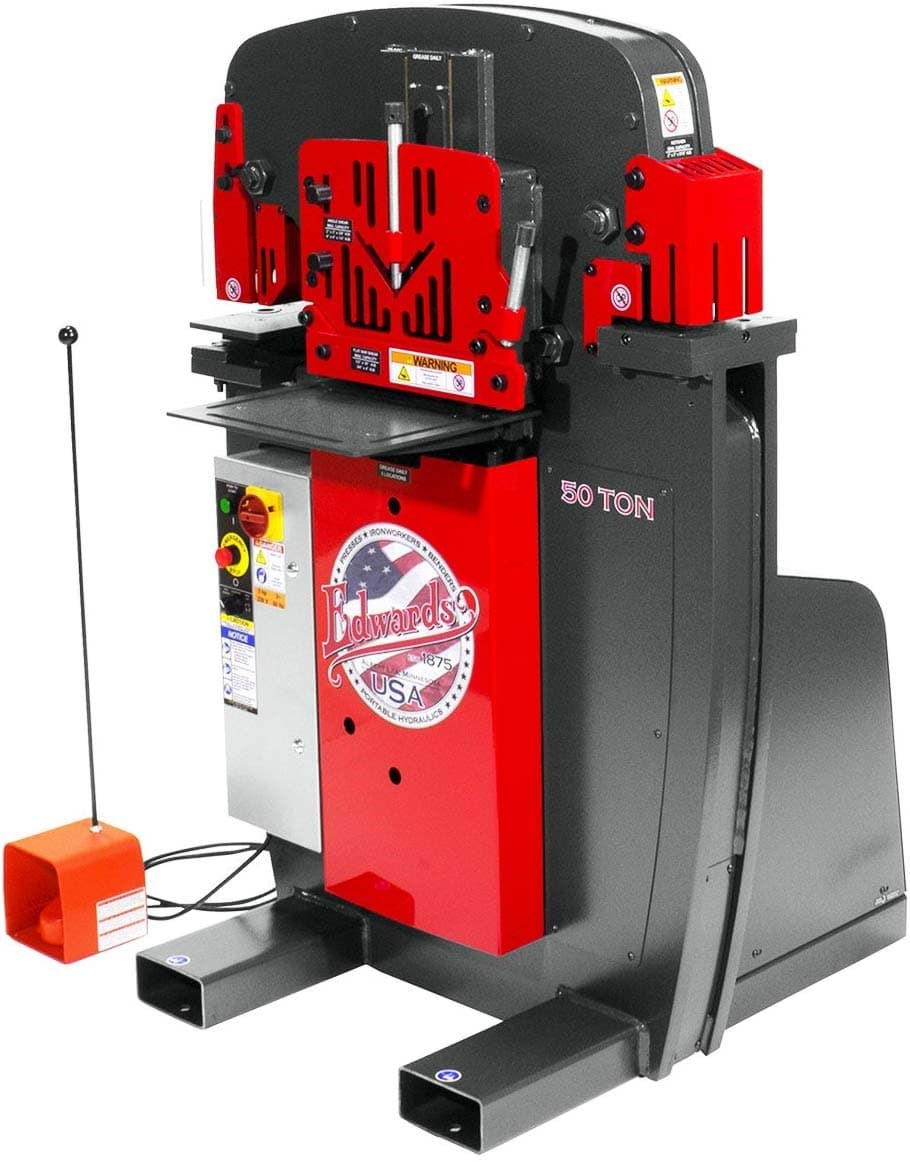

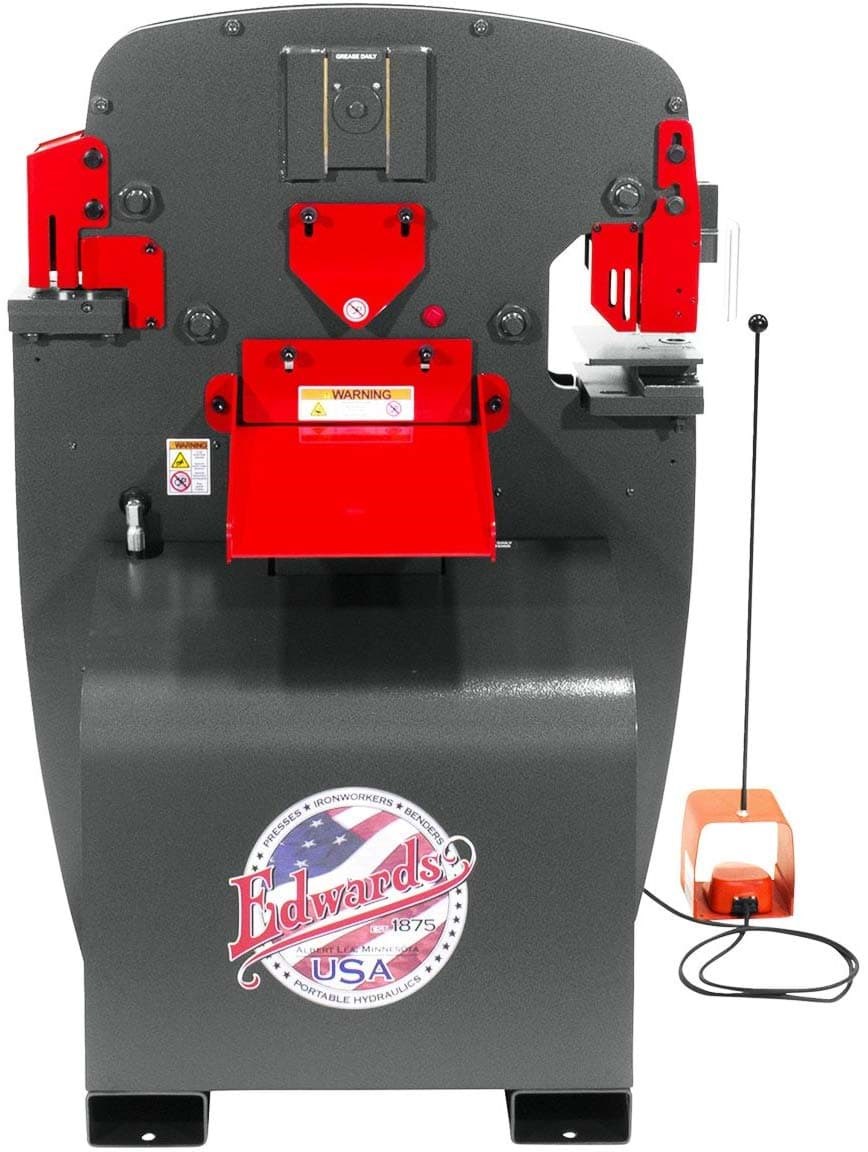

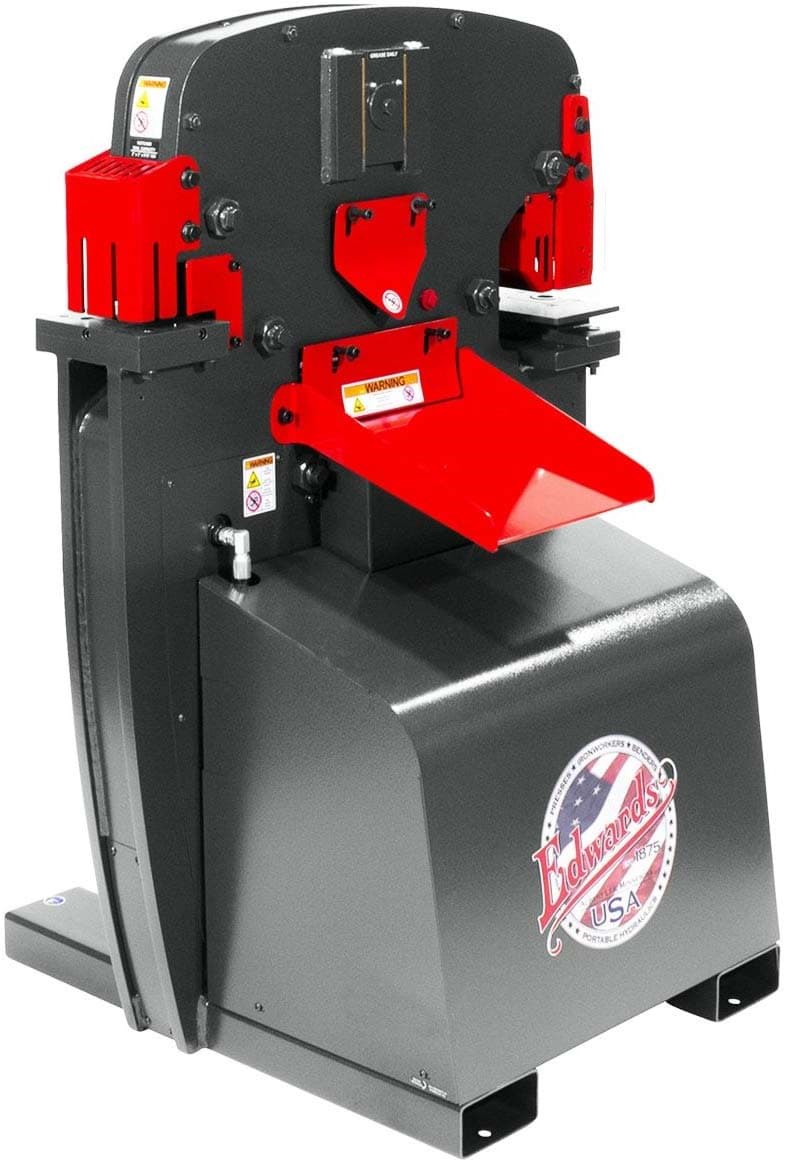

50 Ton Ironworker 575V, 3Ph
- Four Workstations: Standard (4) - Punch, Flat Bar Shear, Angle Shear & Coper Notcher
- 9 additional Attachments available to convert the Punch Workstation to your specific needs
- 16 optional Accessories available to increase precision and efficiency
- Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine.
- Optimized workstation heights for improved efficiency
- Electric foot pedal with integrated jog control
- Adjustable electric stoke control
- Bright LED lights increase visibility
- Adjustable electric stoke control
- ANSI B11.5-1988(02) Compliant Guarding
| Punch Work Height (In.) | 39-9/16 |
| Punch Max Capacity (In.) | 1 diam. in 5/8 mild steel |
| Punch Rating (Tons) | 50 |
| Punch Stroke (In.) | 1-7/8 |
| Punch Throat Depth (In.) | 7 |
| Flat Bar Shear Max Capacity (In.) | 1/2 x 10, 3/4 x 4 |
| Flat Bar Shear Max Square Capacity (In.) | 3/4 |
| Flat Bar Shear Max Round Capacity (In.) | 3/4 diam. |
| Flat Bar Shear Work Height (In.) | 34-1/2 |
| AMPS | 6 |
| Angle Shear Max Capacity (In.) | 3 x 3 x 3/8, 4 x 4 x 1/4 |
| Angle Shear Work Height (In.) | 39-7/8 |
| Coper Notcher Max Capacity (In.) | 2 x 3 x 5/16 |
| Coper Notcher Work Height (In.) | 39-1/2 |
| Motor | 5 HP 575V 3Ph |
| Hydraulics (GPM) | 3-1/2 |
| Hydraulics (PSI) | 2500 |
| Hydraulic Reservoir (Gal.) | 7 |
| Product Dimensions (In.) | 36-3/4 x 36-1/8 x 54-1/2 |
| Shipping Dimensions (In.) | 45 x 51 x 62 |
| Weight (Lbs.) | 2020 |
There are no reviews yet
| Manufacturer warranty | ||
| 1 Year | ||
| Warranty details | ||
|
|
||
